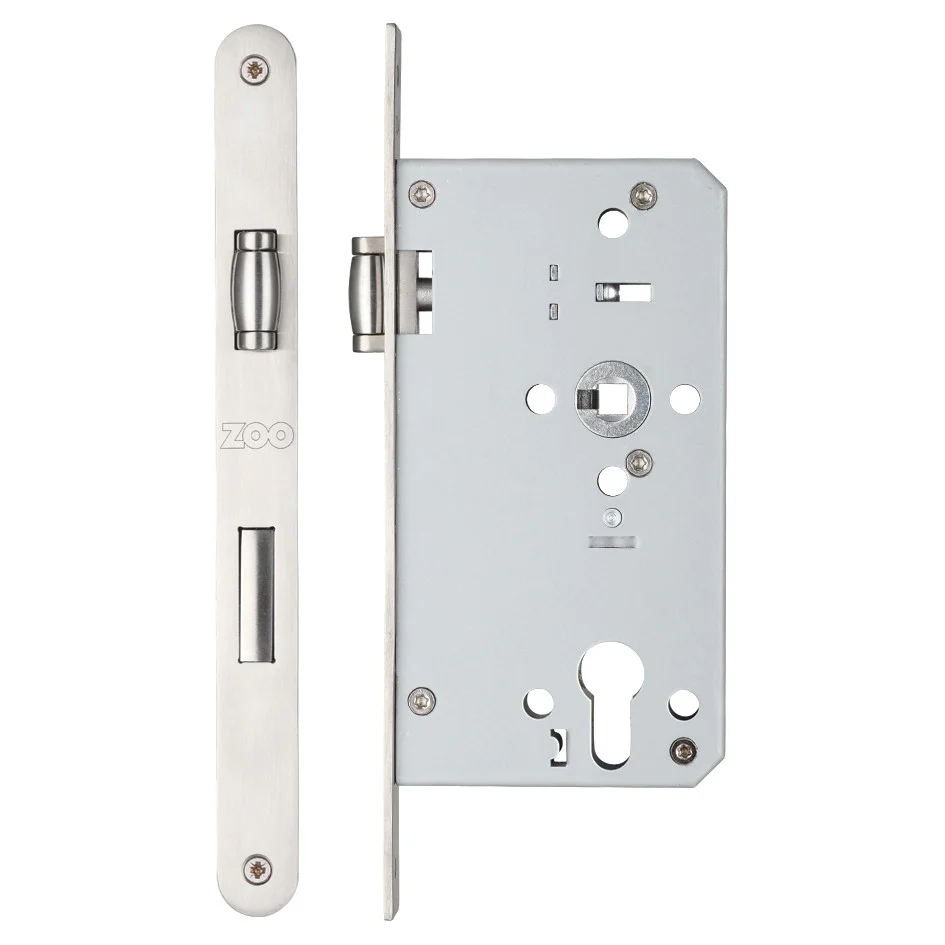

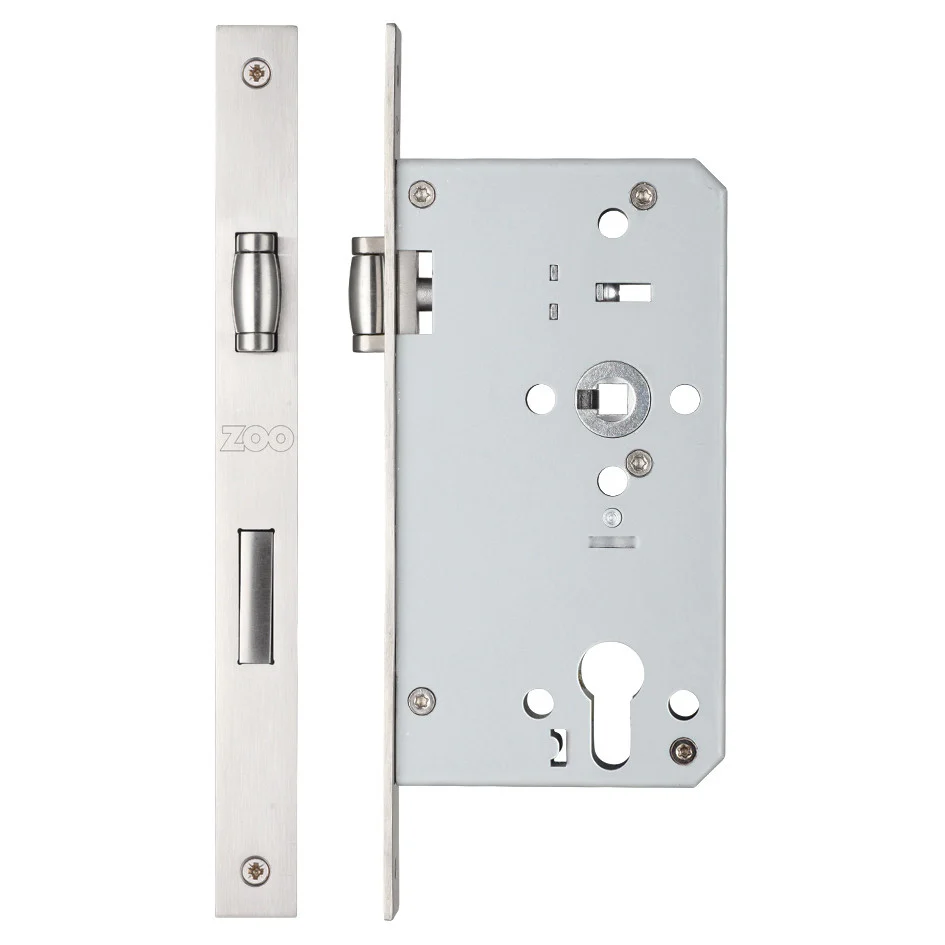

Roller DIN Euro Profile Sashlock – 72mm Centres

The Roller DIN Euro Profile Sashlock is a high-quality locking solution designed for commercial and high-traffic door applications. Featuring a roller latch mechanism, it allows smooth, quiet door operation while maintaining secure locking performance.

Manufactured with Grade 304 stainless steel components and tested to BS EN 12209 Grade 3, this sashlock is suitable for use with euro profile cylinders and is approved for FD30 and FD60 fire-rated timber doors. Available with either a square or radius forend to suit different door preparations.

Key Features

• DIN euro profile sashlock with roller latch
• 72mm centres (c/c)
• 60mm backset
• 90mm case size
• Available with square or radius forend profile (22mm)
• Grade 304 stainless steel forend
• Grade 304 stainless steel latchbolt and deadbolt
• Anti-rattle strike for quiet operation
• Grip-tight follower for consistent handle action

Backset

• 60mm

Case Size

• 90mm

Centres

• 72mm

Forend Profile

• Square – 22mm
• Radius – 22mm

Finish

• Satin Stainless Steel

Standards & Certification

• BS EN 12209 – Grade 3
• CE Marked – CE1121
• Certifire Approved
• Fire Rated: FD30 / FD60 (Timber Doors)

Specifications

• Product Type: Roller DIN Euro Profile Sashlock
• Material: Grade 304 Stainless Steel
• Application: Commercial and fire-rated doors

Packaging Information

• Pack Quantity: 1 sashlock per box
