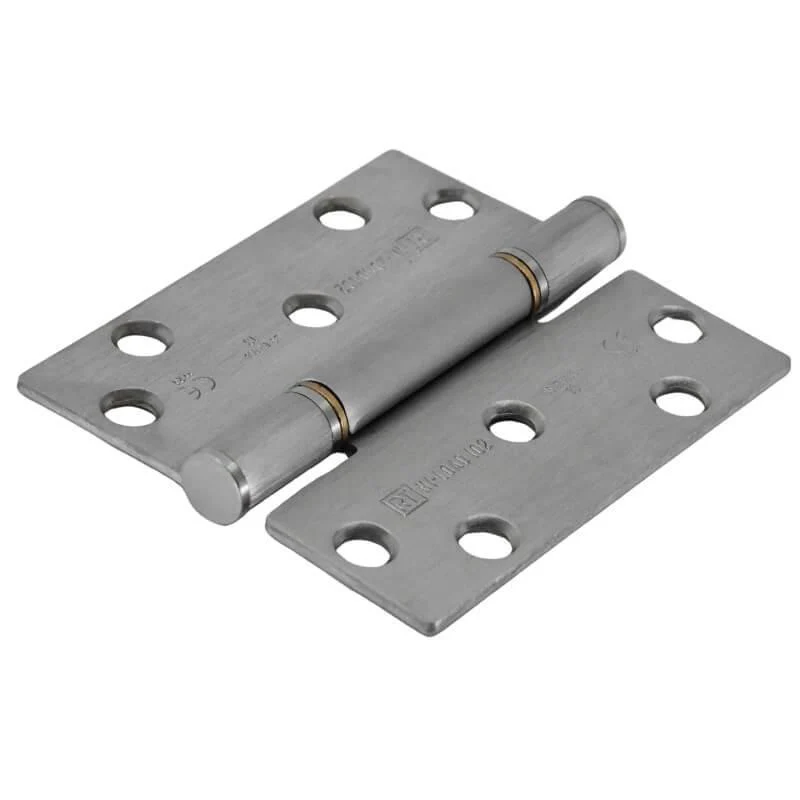

The H102 Hi-Load Steel Hinges are three knuckle butt hinges have the following features:

• 100mm x 88mm overall dimensions
• 3mm gauge
• 13mm diameter knuckle
• Radiused or square corners
• Bright zinc plate or satin stainless steel finish
• Certifire approved CF209
• CE marked 1121-CPR-AC0063
• UKCA marked
• Maintenance free
• BS EN 1935 Grade 13
• Minimum door thickness 44mm
• Supplied with metric 5x32mm wood screws
• Maximum door weight 120kg with 3no hinges
• When installing these hi-load butt hinges to a fire rated door, use the HP102 intumescent hinge pads (code ITHM1-36)


*INTUMESCENT MUST BE USED TO ENSURE FULL COMPLIANCE WITH FIRE RATING.
