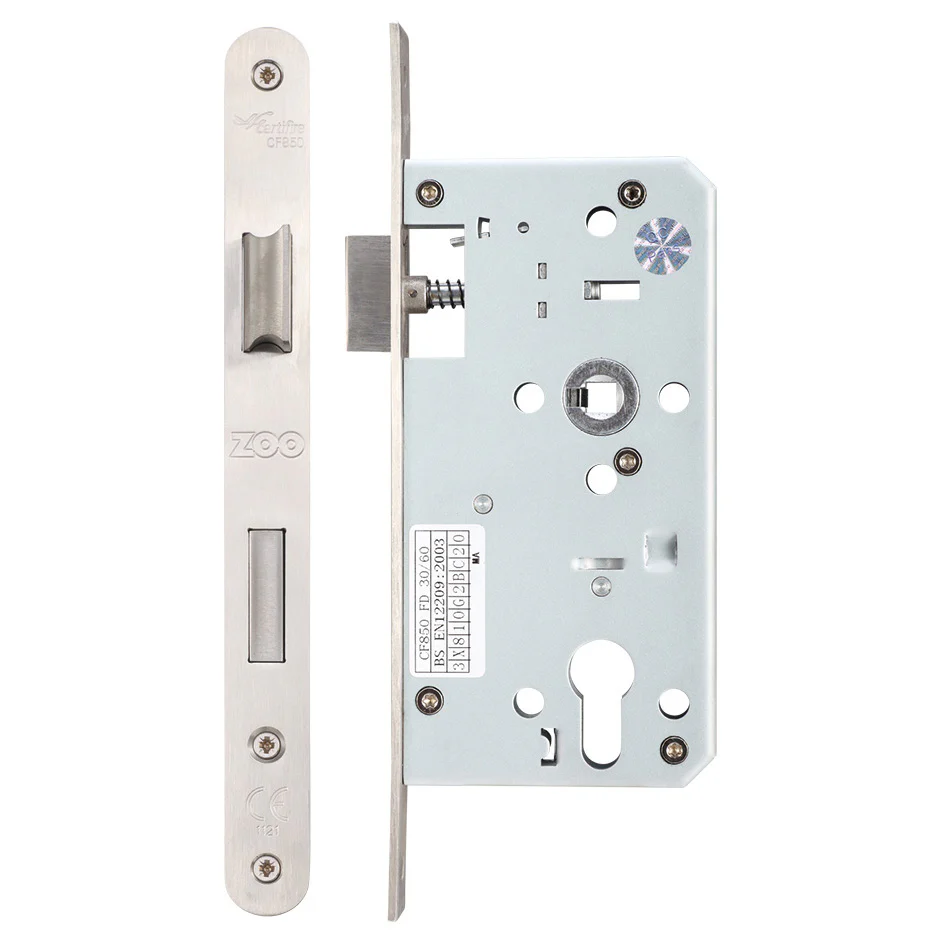

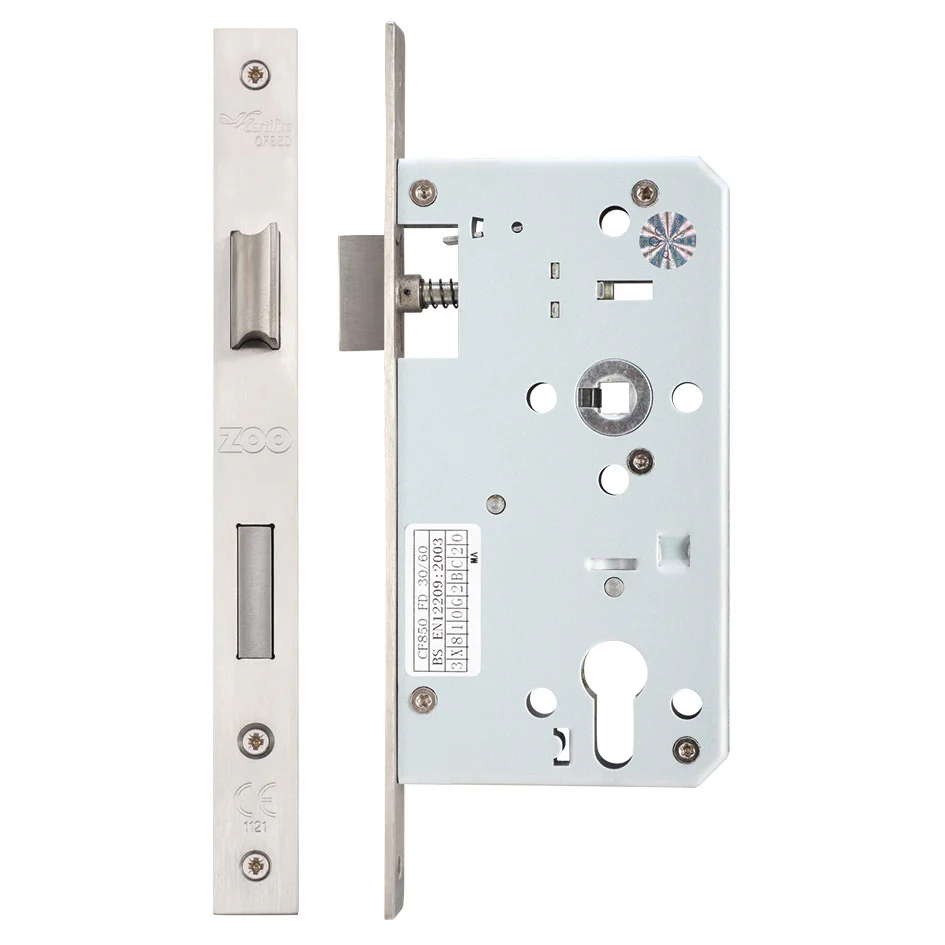

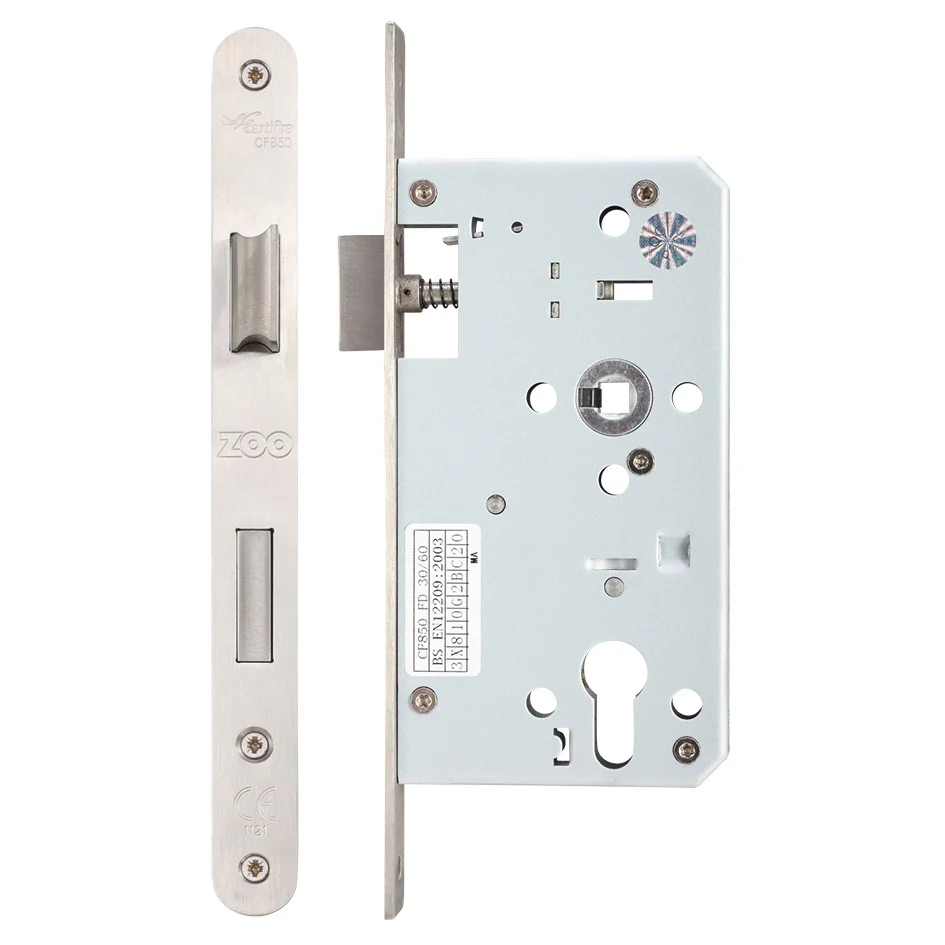

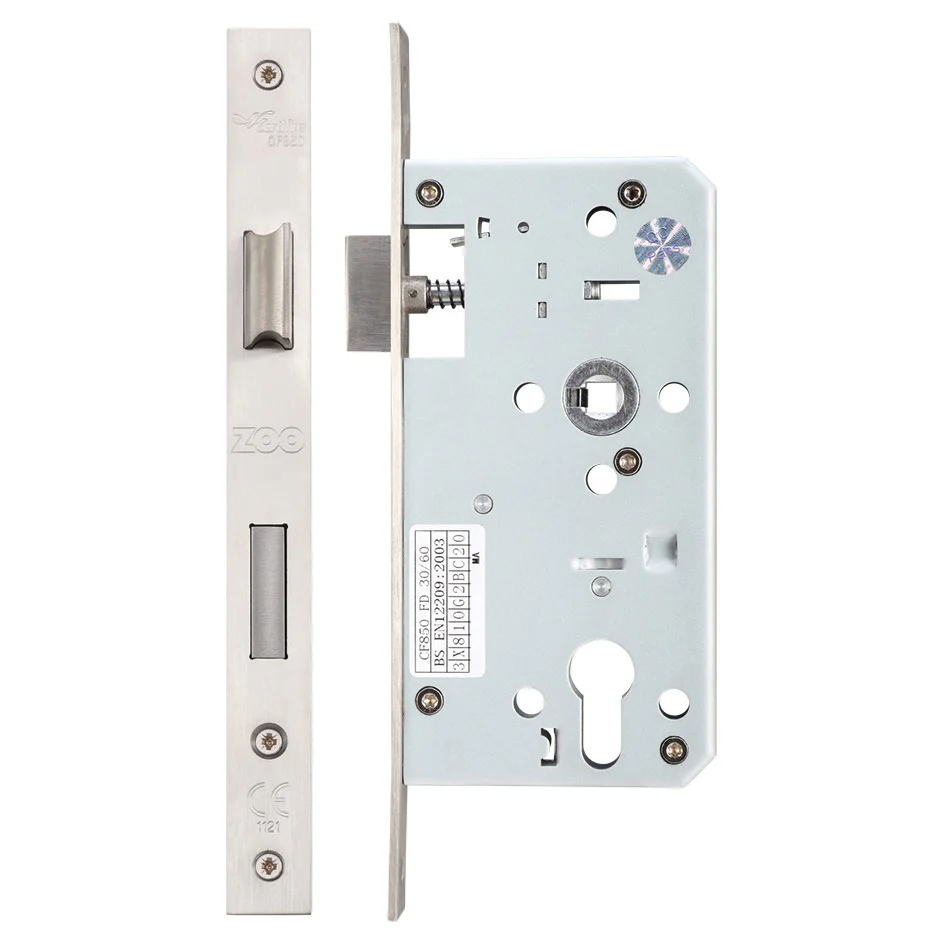

DIN Euro Profile Sashlock – 72mm Centres

The DIN Euro Profile Sashlock is a high-performance locking solution designed for commercial and high-traffic door applications. Manufactured to DIN standards and tested to BS EN 12209:2003 Grade 3, this sashlock delivers durability, precision engineering, and smooth, quiet operation.

Constructed with premium Grade 304 stainless steel components and supplied with an anti-rattle strike, the lock is suitable for demanding environments where reliability and long service life are essential.

Key Features

• DIN euro profile sashlock
• Tested to BS EN 12209:2003 – Grade 3
• 72mm centre to centre
• Grade 304 stainless steel forend (Satin Stainless)
• Grade 304 stainless steel latchbolt and deadbolt
• Available with single or double throw deadbolt
• Anti-rattle strike for quiet operation
• Grip-tight follower for consistent handle action

Available Case Sizes & Backsets

• 90mm Case – 60mm Backset
• 85mm Case – 55mm Backset

Forend Profile

• Radius – 22mm
• Square – 22mm

Finish

• Satin Stainless Steel

Available Variants

• 72mm C/C – 60mm Backset – Radius Forend – Double Throw
• 72mm C/C – 60mm Backset – Square Forend – Single Throw
• 72mm C/C – 60mm Backset – Square Forend – Double Throw
• 72mm C/C – 55mm Backset – Radius Forend – Double Throw
• 72mm C/C – 55mm Backset – Square Forend – Double Throw

Specifications

• Product Type: DIN Euro Profile Sashlock
• Standard: BS EN 12209:2003
• Grade: Grade 3
• Centres: 72mm
• Case Sizes: 85mm, 90mm
• Backsets: 55mm, 60mm
• Forend Profile: Radius or Square (22mm)
• Deadbolt: Single or Double Throw
• Finish: Satin Stainless Steel
• Application: Commercial and high-traffic doors
