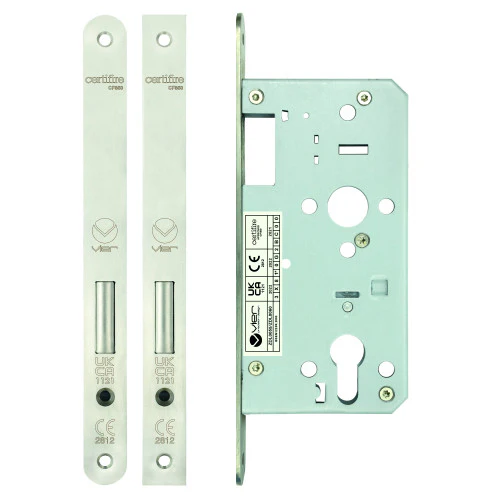

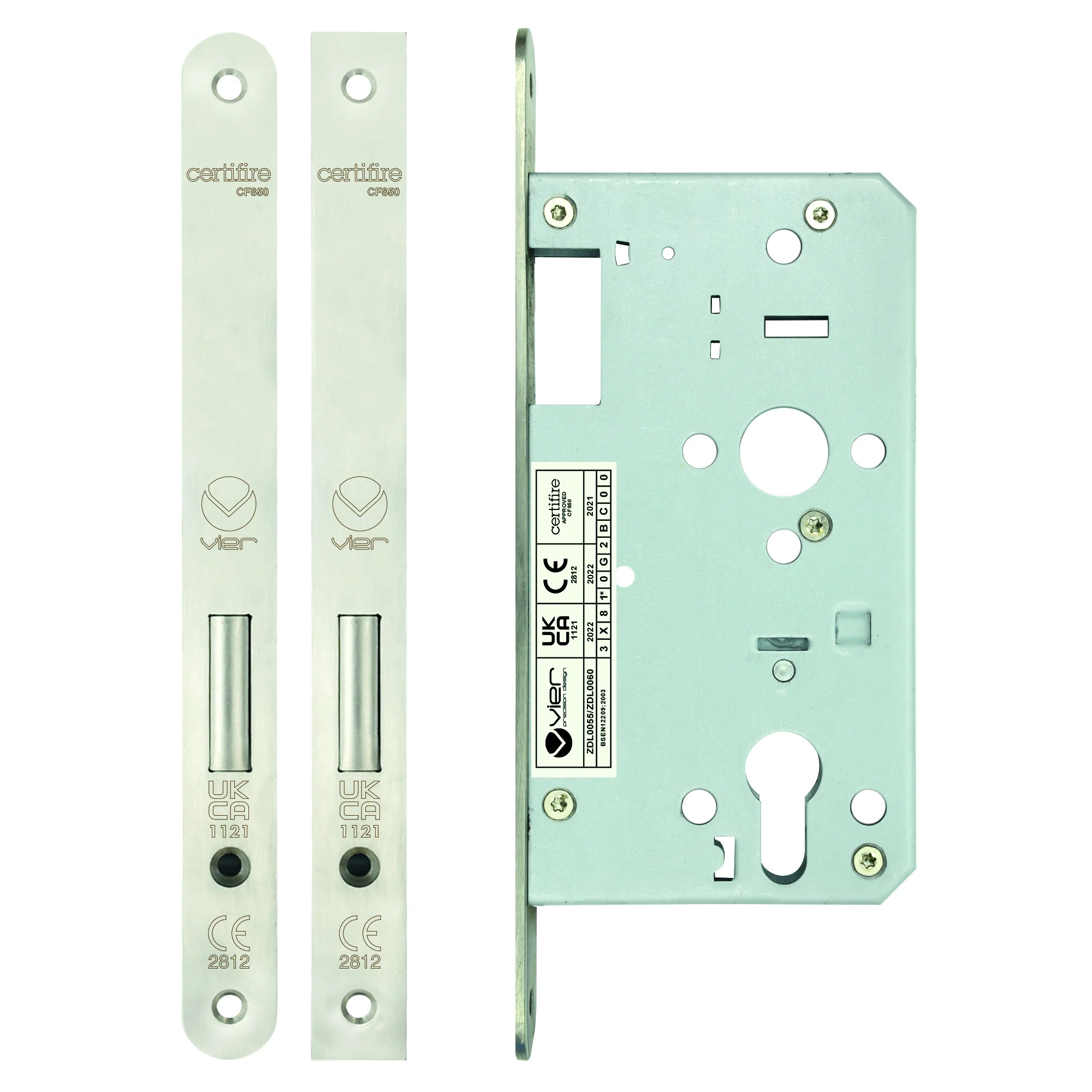

DIN Euro Profile Deadlock – BS EN 12209 Grade 3

The DIN Euro Profile Deadlock is a high-performance locking solution engineered for commercial and high-traffic door applications. Tested to BS EN 12209:2003 Grade 3, this deadlock delivers dependable security, durability, and consistent operation in demanding environments.

Manufactured with Grade 304 stainless steel components and designed for use with euro profile cylinders, the lock features a robust double throw deadbolt and precision-engineered internals for smooth, reliable performance.

Key Features

• DIN euro profile deadlock
• Tested to BS EN 12209:2003 – Grade 3
• 72mm centre to centre
• Available in 55mm or 60mm backset
• 85mm or 90mm case size (depending on backset)
• Available with square or radius forend profile (22mm)
• Grade 304 stainless steel forend
• Grade 304 stainless steel deadbolt
• Double throw deadbolt for enhanced security
• Grip-tight follower for consistent operation

Backset Options

• 55mm
• 60mm

Forend Profile

• Square – 22mm
• Radius – 22mm

Finish

• Satin Stainless Steel

Standards & Certifications

• BS EN 12209:2003 – Grade 3
• CE Marked – CE2812
• UKCA Marked – UKCA1121
• Fire Rated: FD120 / FD240
• Certifire: CF850

Specifications

• Product Type: DIN Euro Profile Deadlock
• Centres: 72mm
• Backset: 55mm / 60mm
• Case Size: 85mm / 90mm
• Forend Profile: Square or Radius (22mm)
• Deadbolt: Double Throw
• Material: Grade 304 Stainless Steel
• Application: Commercial and fire-rated door installations

Packaging Information

• Pack Quantity: 1 deadlock per box
