Concealed Hinge Jig – For Eclipse 3.2 Concealed Hinges

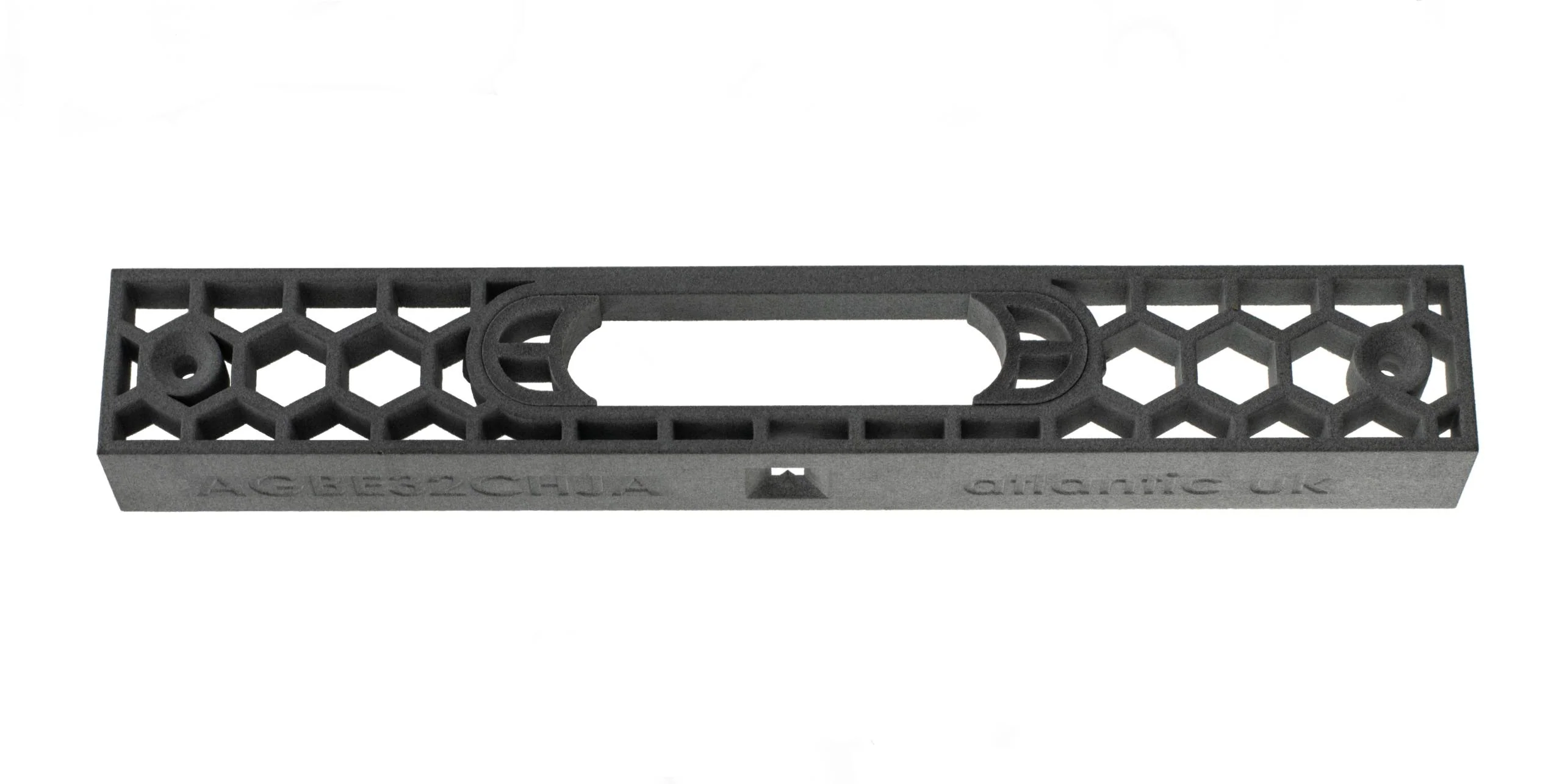

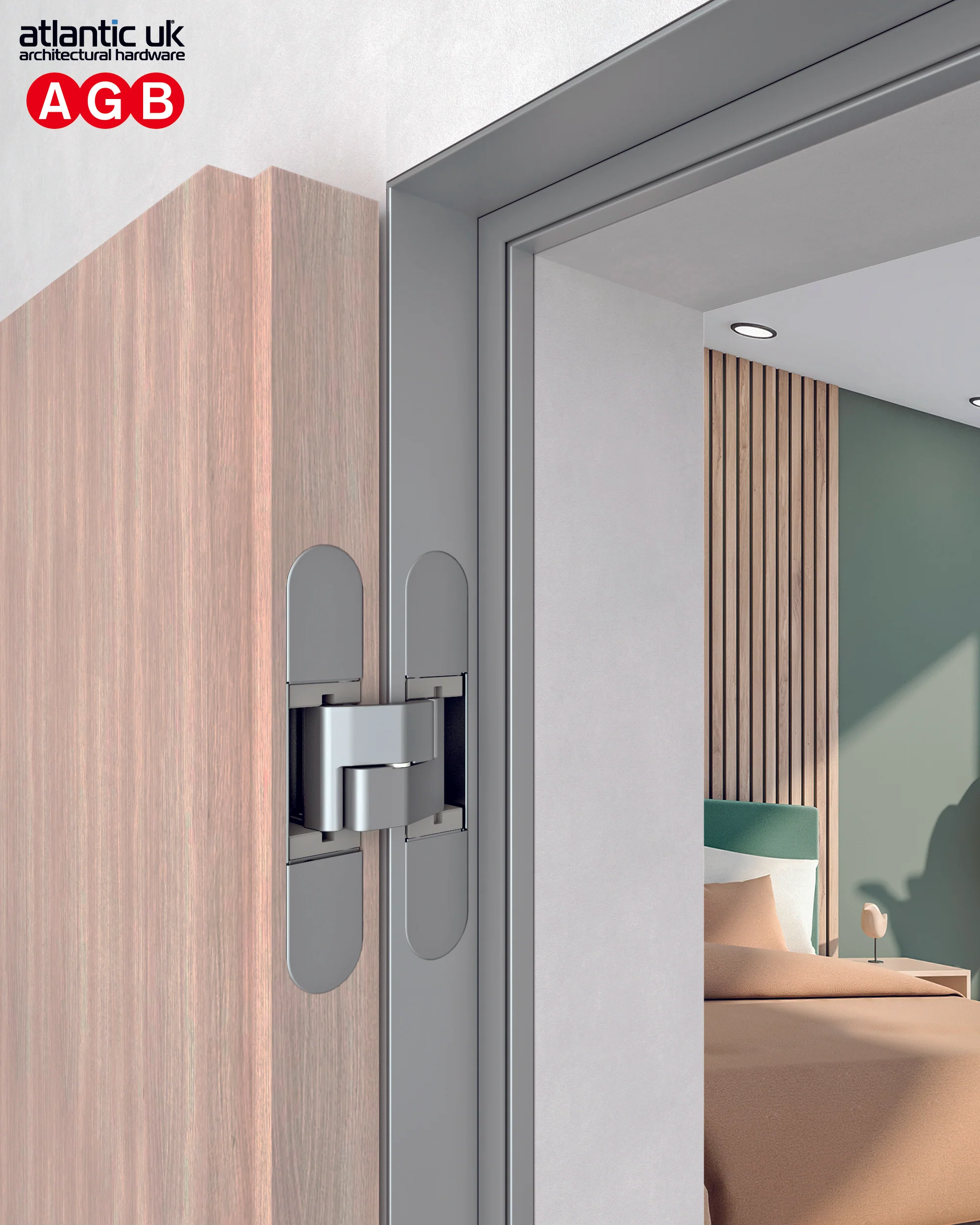

The Concealed Hinge Jig is a precision installation tool designed to ensure accurate and repeatable routing for concealed hinges. It is specifically suitable for the Eclipse 3.2 range, including the 3.2 HD and 3.2 HD SELF concealed hinges, provided the correct routing depth is achieved.

Engineered for professional use, this jig allows precise hinge positioning with a centred indicator and a ±3mm offset option, ensuring perfect alignment every time. Manufactured using durable nylon PA12 additive manufacturing, it offers strength, repairability, and protection for tooling during installation.

Key Features

• Designed for Eclipse 3.2 concealed hinge range
• Compatible with 3.2 HD and 3.2 HD SELF hinges
• Centred indicator with ±3mm offset for precise hinge placement
• Manufactured from durable nylon PA12 using additive manufacturing
• Repairable with two-part wood filler if damaged
• Protects router bits from damage during use
• Supplied with jig and two interchangeable inserts
• Recommended for use on new doors and door frames only

Recommended Tooling

• Top bearing guided router bit (e.g. Trend C121BX1/4TC)
• 22mm Forstner bit or non self-feeding spade bit
• Chisel for final clean-up if required

Specifications

• Product Type: Concealed Hinge Jig
• Category: Concealed Hinges
• Unit of Sale: Each
• Material: Nylon PA12 (additive manufactured)
• Door Thickness Compatibility: 35mm and above
• Maximum Frame Rebate: 12mm
• Included: Jig with 2 inserts
• Application: Accurate routing for concealed hinges
