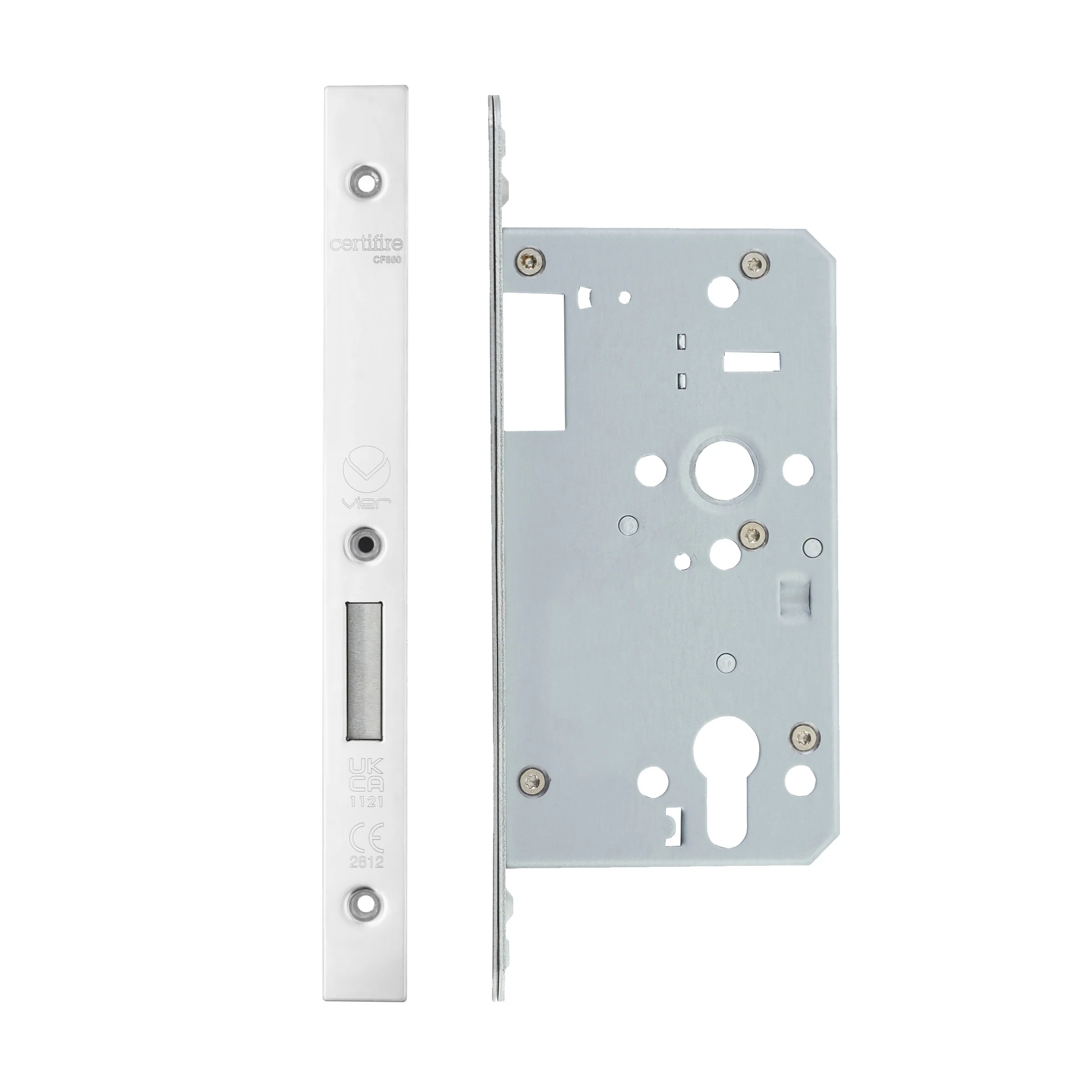

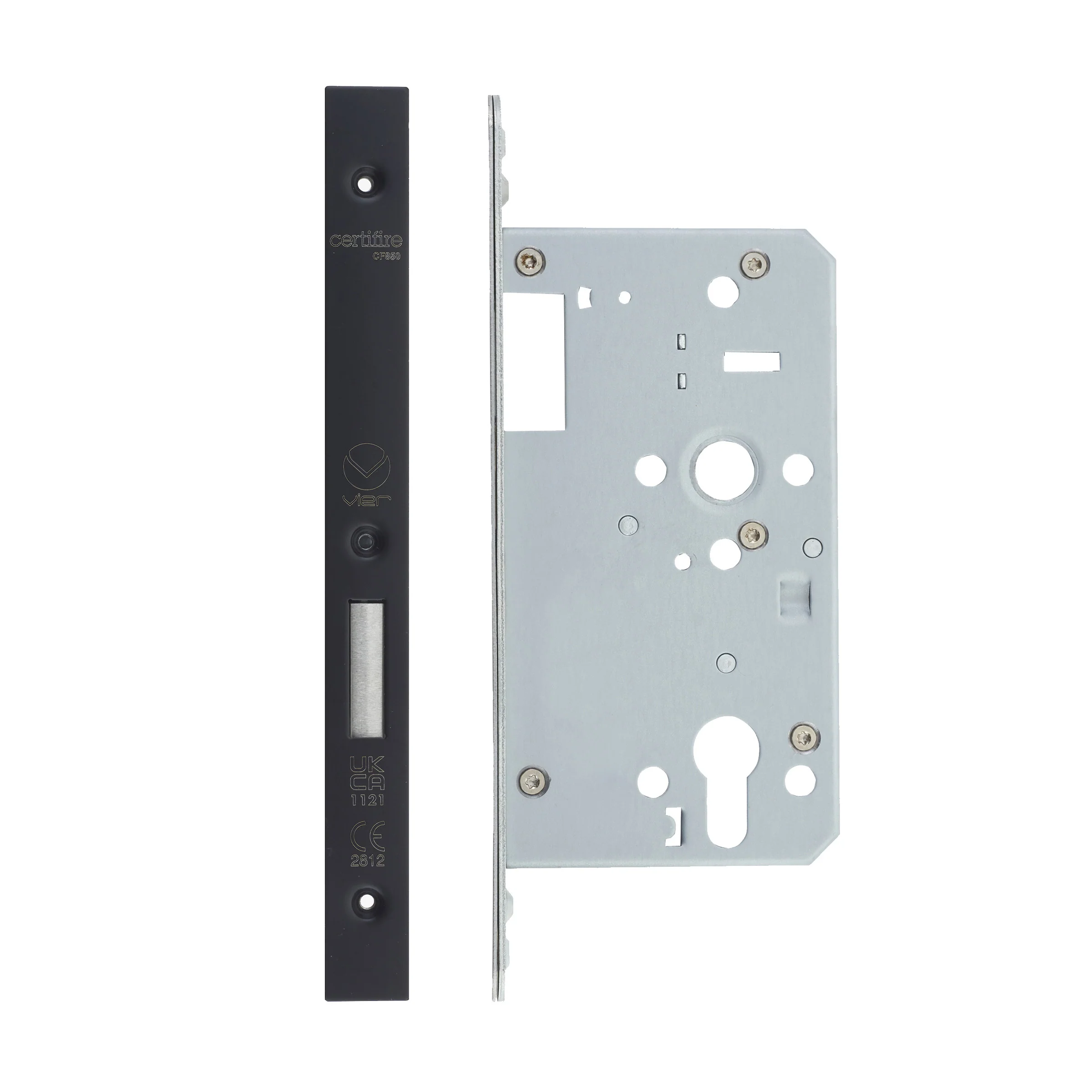

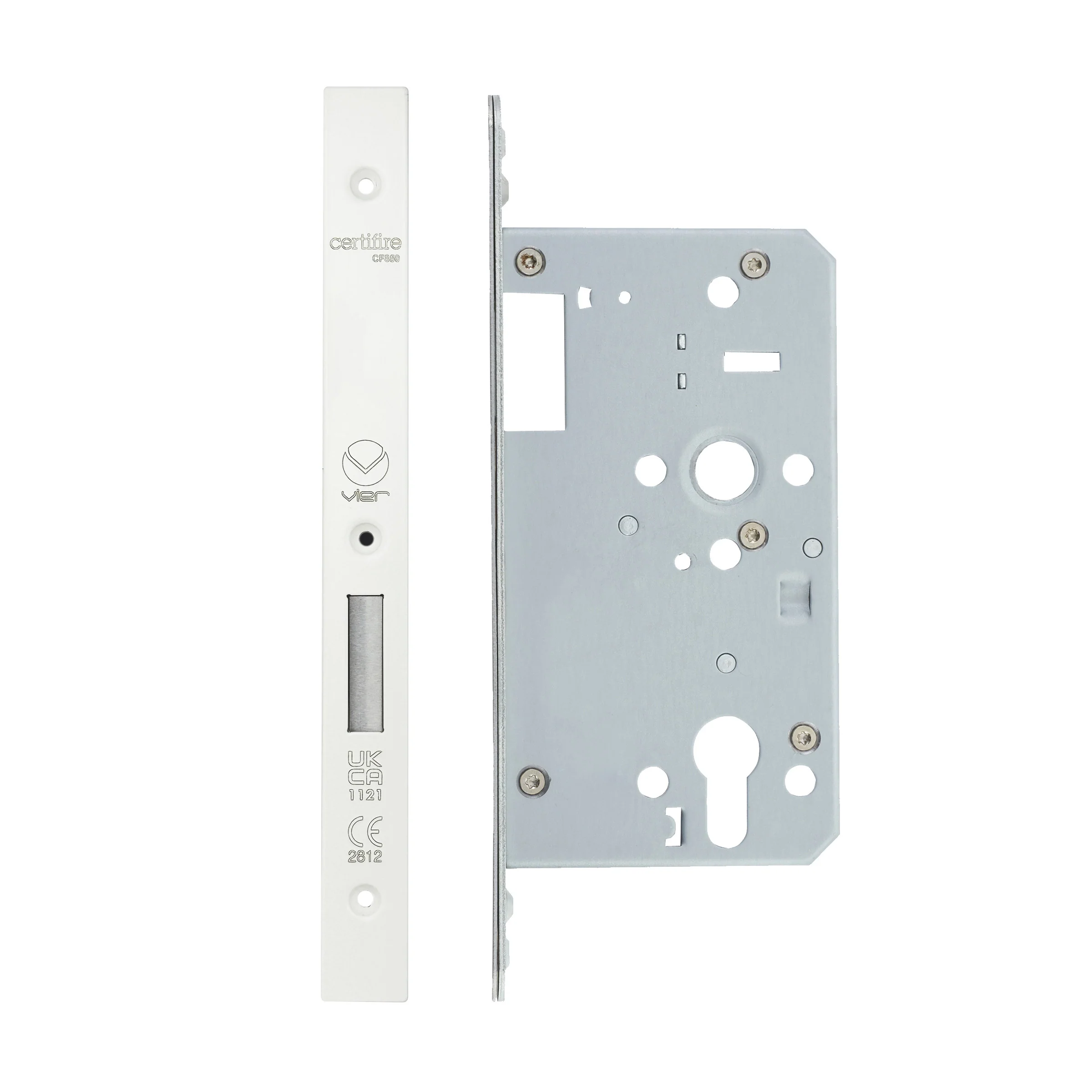

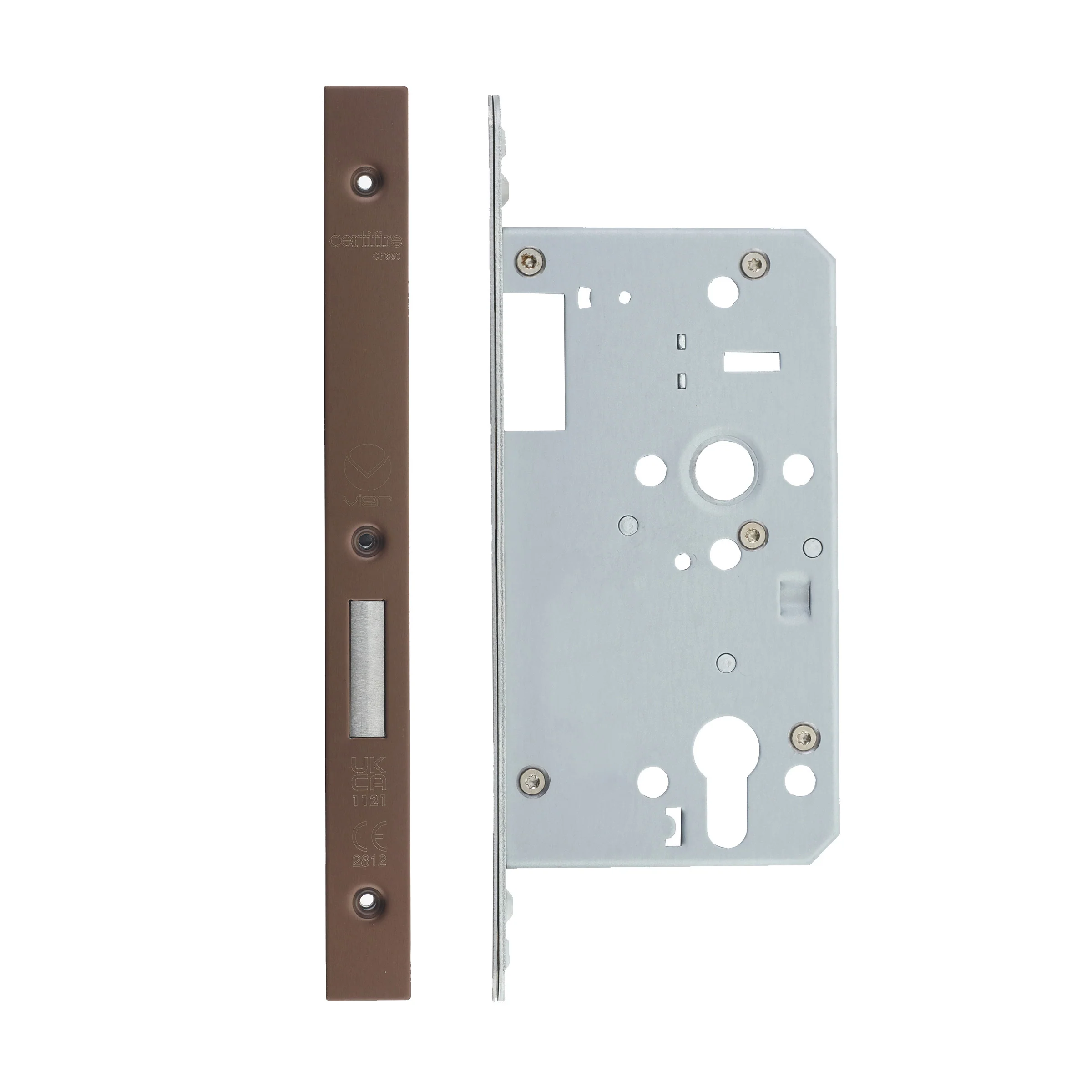

2 Piece DIN Euro Profile Deadlock – 72mm Centres

The 2 Piece DIN Euro Profile Deadlock is a robust, high-performance locking solution designed for commercial and high-traffic door applications. Engineered to DIN standards and tested to BS EN 12209:2003 Grade 3, this deadlock delivers dependable security with smooth and reliable operation.

Manufactured with premium Grade 304 stainless steel components and a durable two-piece forend, the lock is compatible with euro profile cylinders and is suitable for demanding environments where strength, longevity, and precision engineering are essential.

Key Features

• DIN euro profile deadlock
• 72mm centre to centre
• 90mm case size
• Available in 55mm or 60mm backset
• Available with square or radius forend profile (22mm)
• SS304 two-piece forend construction
• Grade 304 stainless steel forend
• Stainless steel deadbolt
• Available with single throw or double throw deadbolt
• Anti-rattle strike (double throw versions)
• Grip-tight follower for consistent operation

Backset Options

• 55mm
• 60mm

Forend Profile

• Square – 22mm
• Radius – 22mm

Deadbolt Throw

• Single Throw
• Double Throw

Finish

• Satin Stainless Steel
• Polished Stainless Steel
• Powder Coat Black
• Powder Coat White
• PVD Gold
• PVD Satin Black
• PVD Satin Bronze
• PVD Satin Brass

Specifications

• Product Type: DIN Euro Profile Deadlock
• Standard: BS EN 12209:2003 – Grade 3
• Centres: 72mm
• Case Size: 90mm
• Backset: 55mm / 60mm
• Forend Profile: Square or Radius (22mm)
• Deadbolt: Single or Double Throw
• Material: Grade 304 Stainless Steel
• Application: Commercial and high-traffic doors

Packaging Information

• Pack Quantity: 1 deadlock per box
